Sticky Turrets

GHQ's micro armor is great, but the one annoying thing about them is the pin that holds the turret to the body of the tank. They are tiny nubbins. The slightest bump on the battlefield and they fall off:

Chinese Type 63 Light Tank (GHQ RC3)

There have been a number of posts on various sites including GHQ's rare earth magnets have replaced the tiny posts. So, I thought I'd give it a try.

I used rare earth magnets from K&J Magnetics. I use these to mount my aircraft. They have a huge variety to choose from and have very good service.

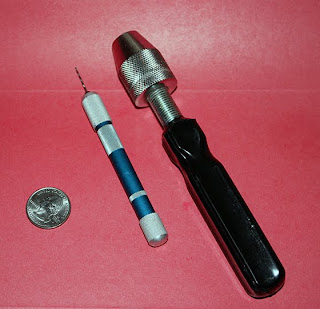

I sniped off the post and then tried to drill the hole. At first I used my old trusty pin vise, but the drill bit was too large for it, so I ended up buying a whopper of a pin vise. This thing could do some serious hurt'n in the wrong hands!


I drilled a hole in the turret and then widened and deepened the hole on the body of the tank:


You need to make sure its deep enough especially on the turret so that the magnet is at least flush with the bottom of the turret, otherwise the turret will sit at an odd angle on the body. I then glued the magnets in. Make sure the polarities are opposite.


As you can see, the magnet in the turret is a little off center. But, it seems to sit OK on the body, and nothing looks odd when you turn the turret.
